Introduction:

The slaughter scale (also known as the track scale or suspension track scale) is a measuring device installed on the sliding track in the slaughter workshop. It requires no special operation; when weighing, one simply needs to slide it across the track to accurately determine the weight. It is waterproof and moisture-resistant, effectively overcoming the high humidity characteristic of slaughter workshops. Additionally, it can be equipped with a large screen and wireless instrument. This design significantly simplifies the workload of operators and prevents instrument damage caused by greasy conditions. Therefore, the track scale has found widespread application.

Technical parameters

1. Accuracy level: 0IML/

2. Table size (width and length) between 11 and 24 meters

3. Optional operating temperature range for weighing display instrument: 0℃~+40℃

4. Scale platform and sensor: -20℃~+60℃

5. Safe overload of 150%

6. Relative humidity < 90%

7. Operating power supply: 220VAC, 49Hz to 51Hz

8. Safe load >= 125%

Product Features

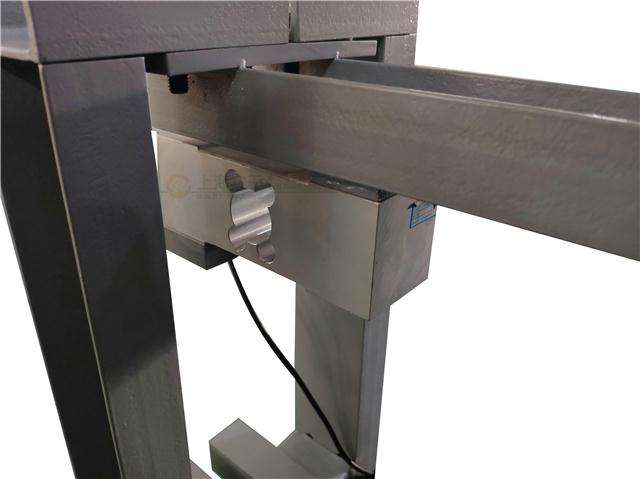

1. It includes a scale frame, display instrument, sensor, and junction box, all made of 304 stainless steel.

2. High-precision waterproof scale, compliant with national standards, with waterproof ratings of IP65, IP67, and IP68

3. Main functions and features: waterproof, oil-resistant, and corrosion-resistant

4. Made of high-quality stainless steel with a sleek, ultra-thin design, making it easy to weigh

5. Equipped with four high-precision moisture-resistant sensors, achieving a maximum accuracy of 1/15,000, ensuring precise and stable performance

6. The display instrument is fully sealed to prevent any water and gas from entering!

7. Especially suitable for chemical, food, and other animal farms

8. Range: 0.3T~5T

9. Size: 1.2×1.5m~2×4m
